• Rear wheel drive
• 3.73 axle ratio w/limited slip differential
• 58 amp-hour (540 CCA) maintenance-free battery w/battery-saver feature
• 120 amp alternator
• Class III trailer tow pkg-inc: 7-pin trailer wiring harness, frame-mounted weight-distributing hitch
• Fail-safe cooling feature

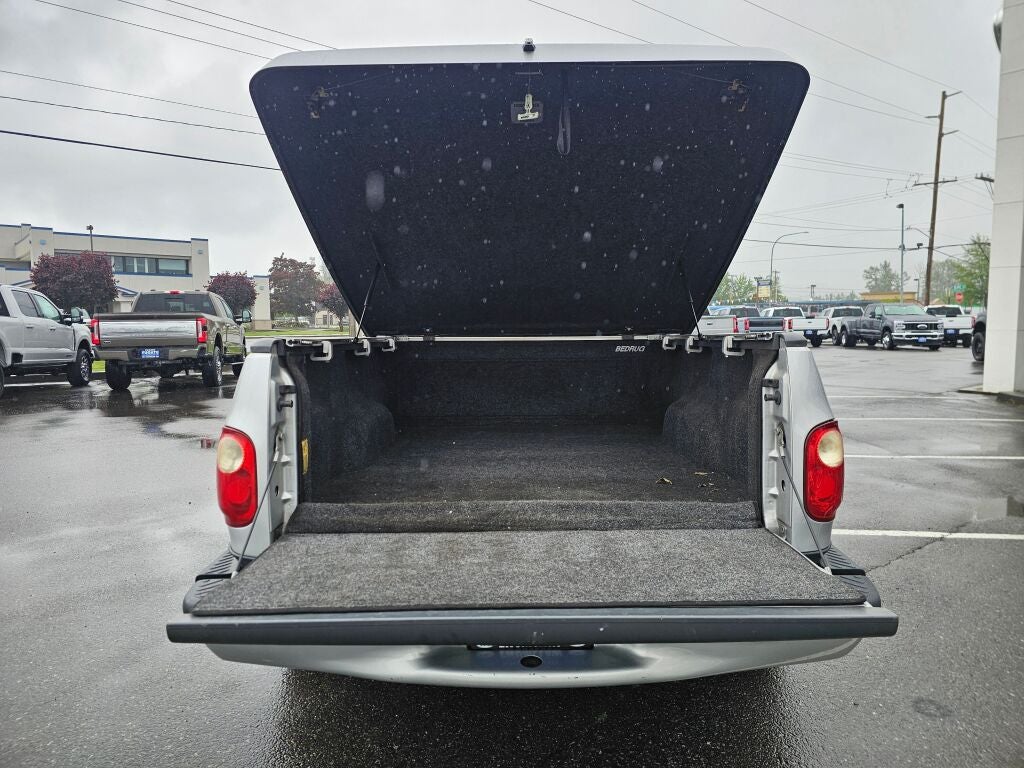

• 6-1/2' pickup box w/(4) tie-down hooks
• Flareside pickup box
• 6050# GVWR/1400# maximum payload
• 3225# capacity twin forged SLA front axle
• 2800# capacity rear axle
• Front coil/rear leaf spring suspension-inc: modified rate & height, front/rear stabilizer bar
• HD gas shock absorbers
• P295/45R18 Goodyear Eagle F1-GS BSW tires
• 16" spare tire/wheel

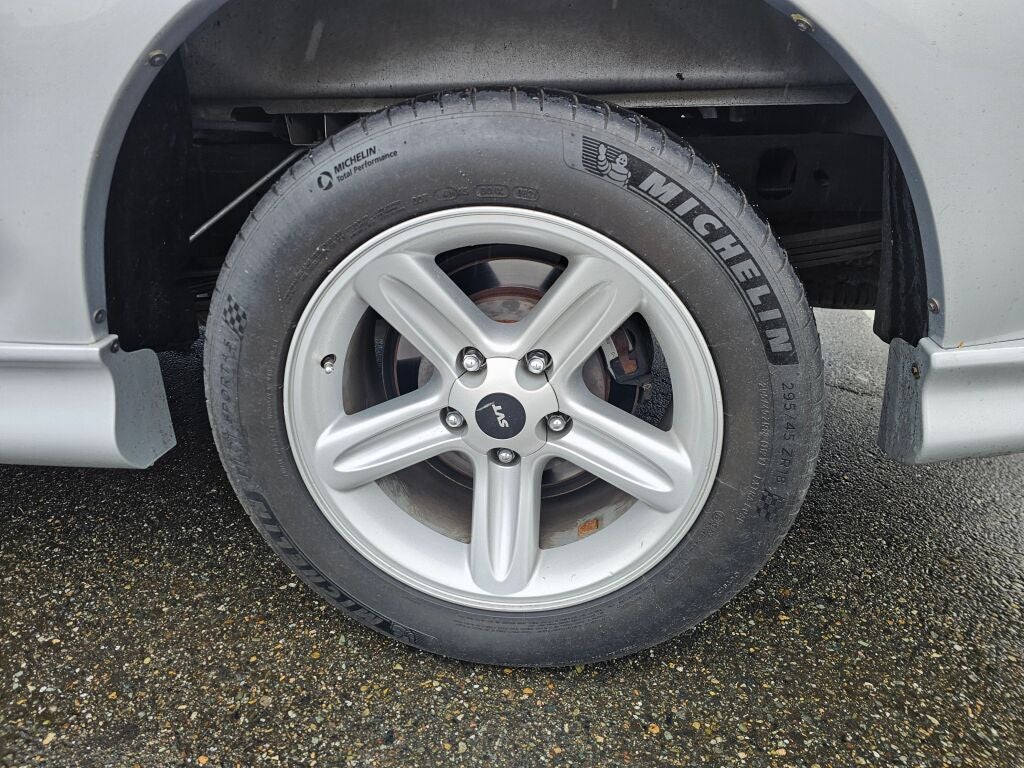

• 18" x 9.5" 5-stud 5-spoke painted cast-aluminum wheels w/locking lug nuts
• Pwr steering
• External pwr steering cooler
• Pwr front/rear anti-lock disc brakes (ABS)
• 25.0 gallon fuel tank
• Unique tuned dual exhaust w/side exit

• Color-keyed front/rear step bumper

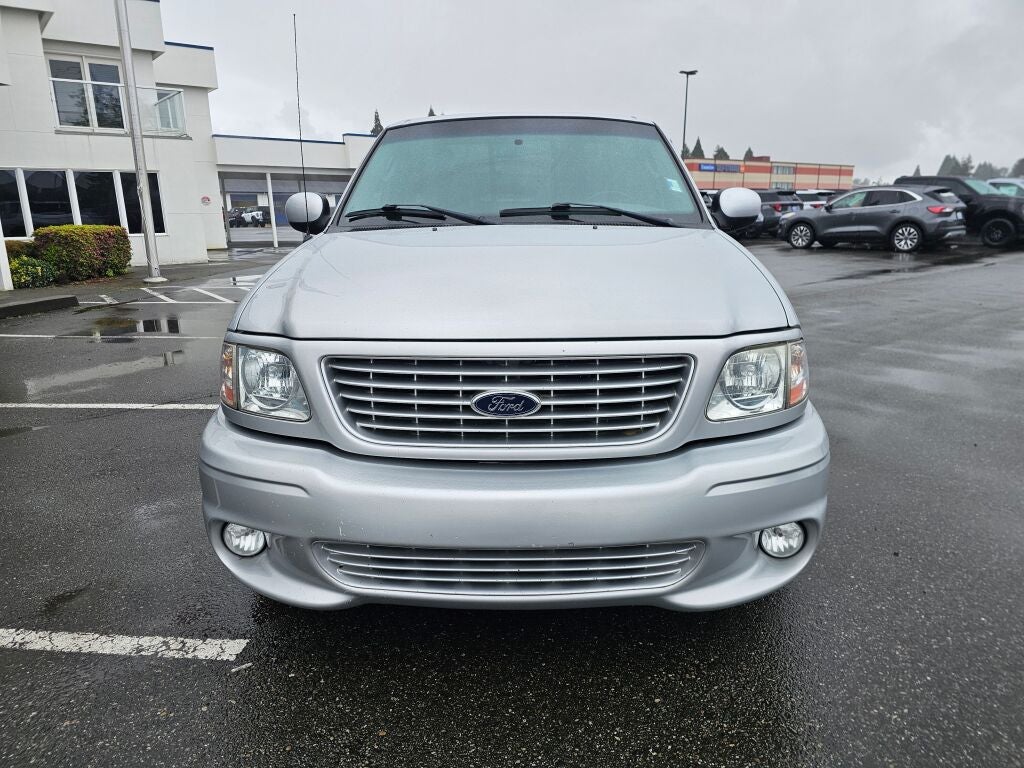

• Color-keyed grille/headlamp surrounds
• Unique upper & lower grilles
• Unique color-keyed rocker moldings
• Unique clear lens headlights/tail lights/front turn signals

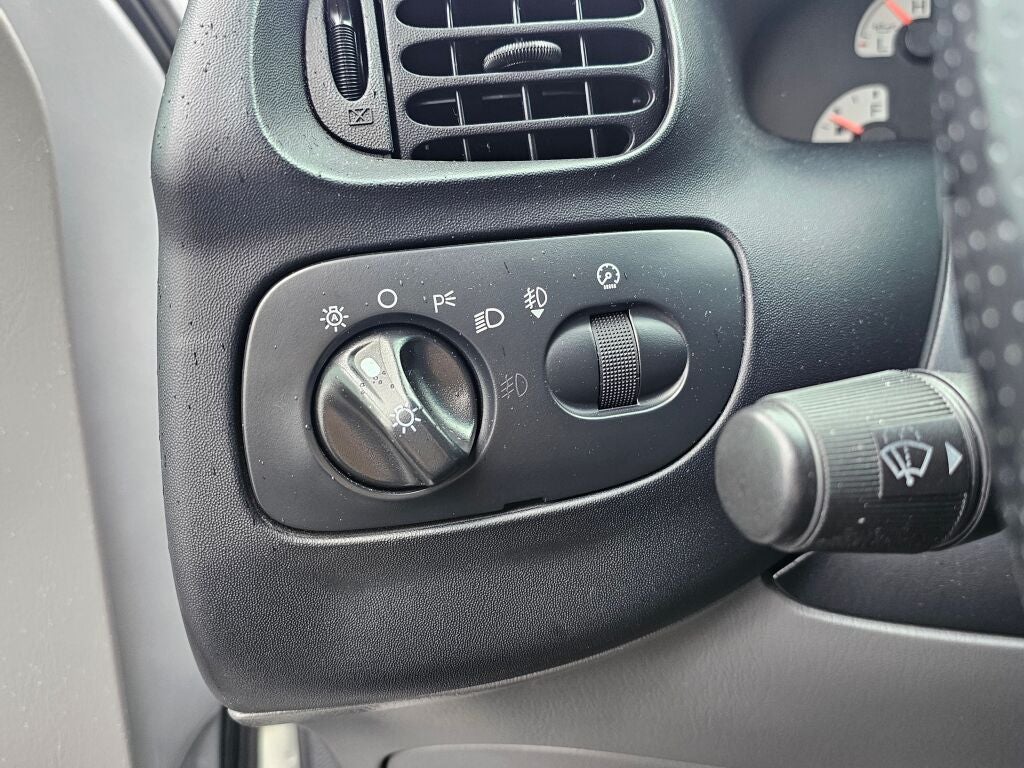

• Autolamp automatic on/off headlamps
• Unique round clear lens fog lamps
• Unique LED center high-mounted stop light w/cargo box lights
• Dual body-color heated pwr mirrors w/turn signal indicator
• Dark-tinted rear window glass
• Sliding rear window
• Speed-dependent interval wipers

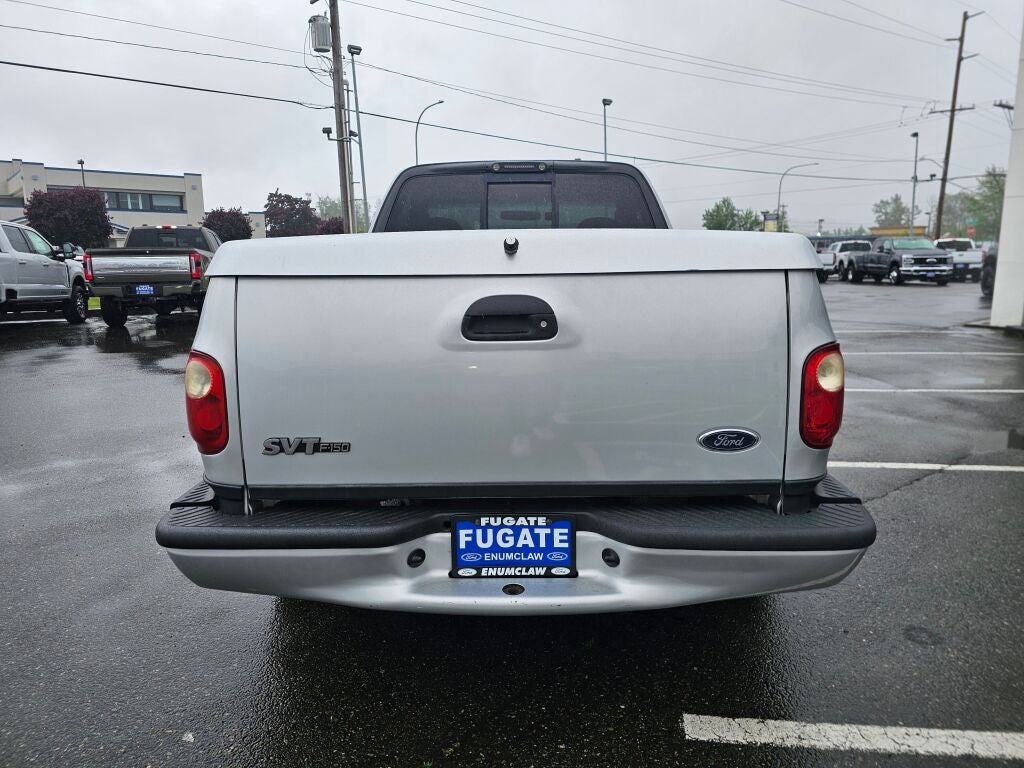

• Removable locking tailgate

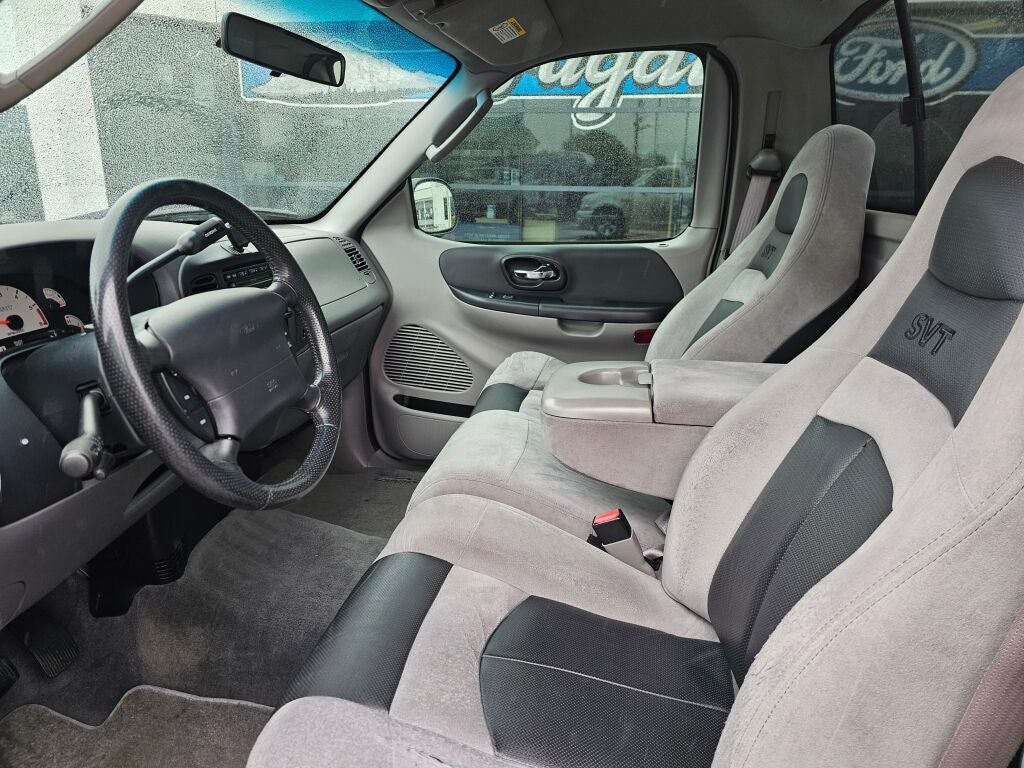

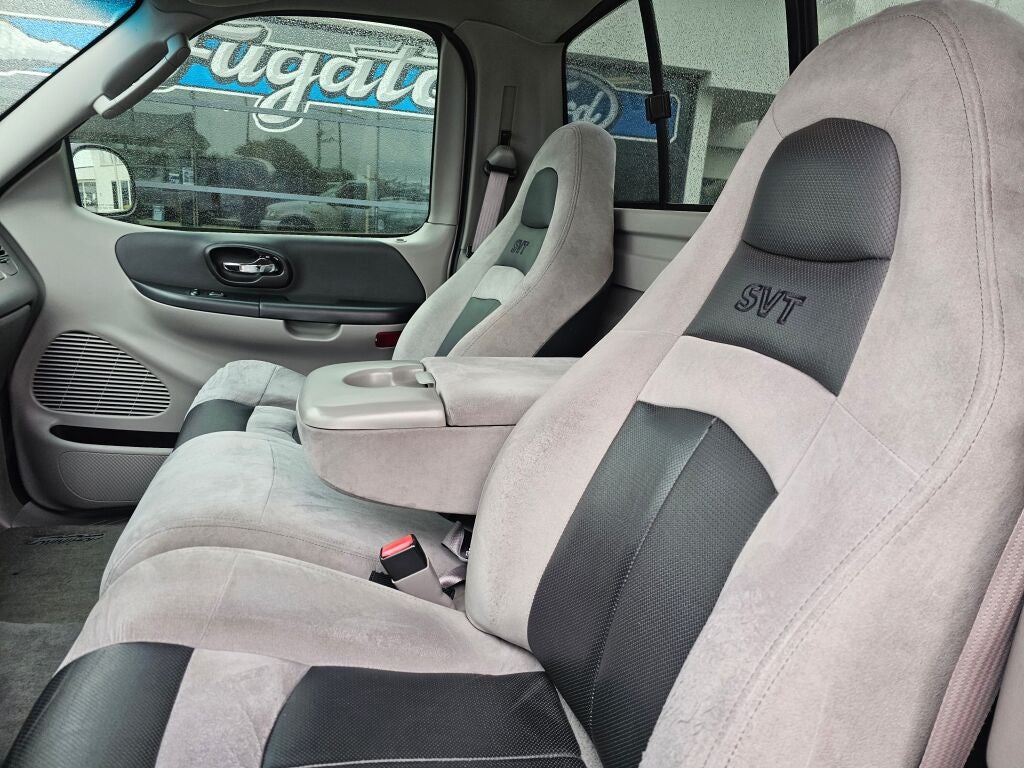

• Unique cloth/leather front split bench seat w/unique stitching/side bolsters/SVT lettering embroidered in seat back

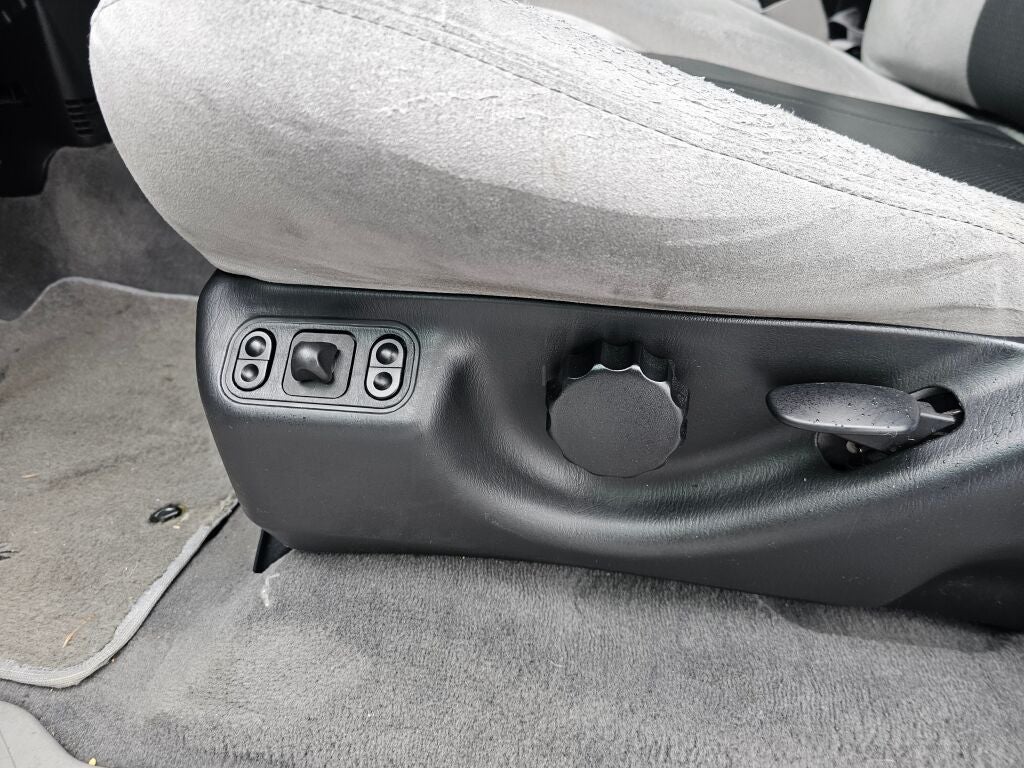

• Pwr driver seat
• Color-keyed carpeting
• Color-keyed carpeted floor mats

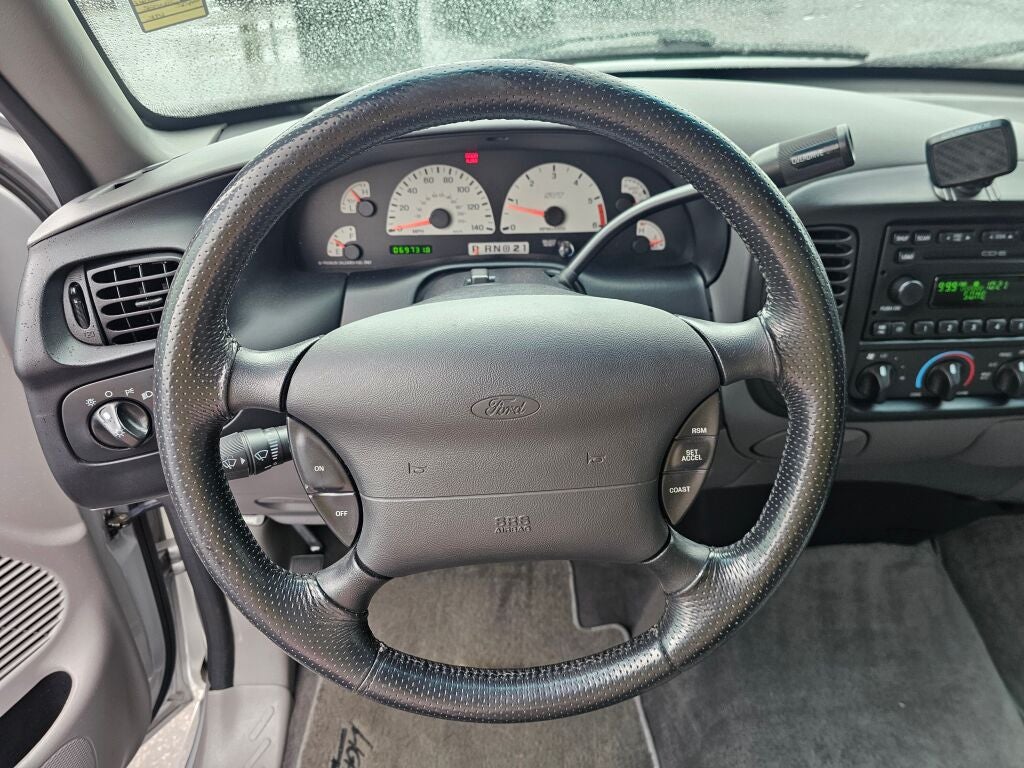

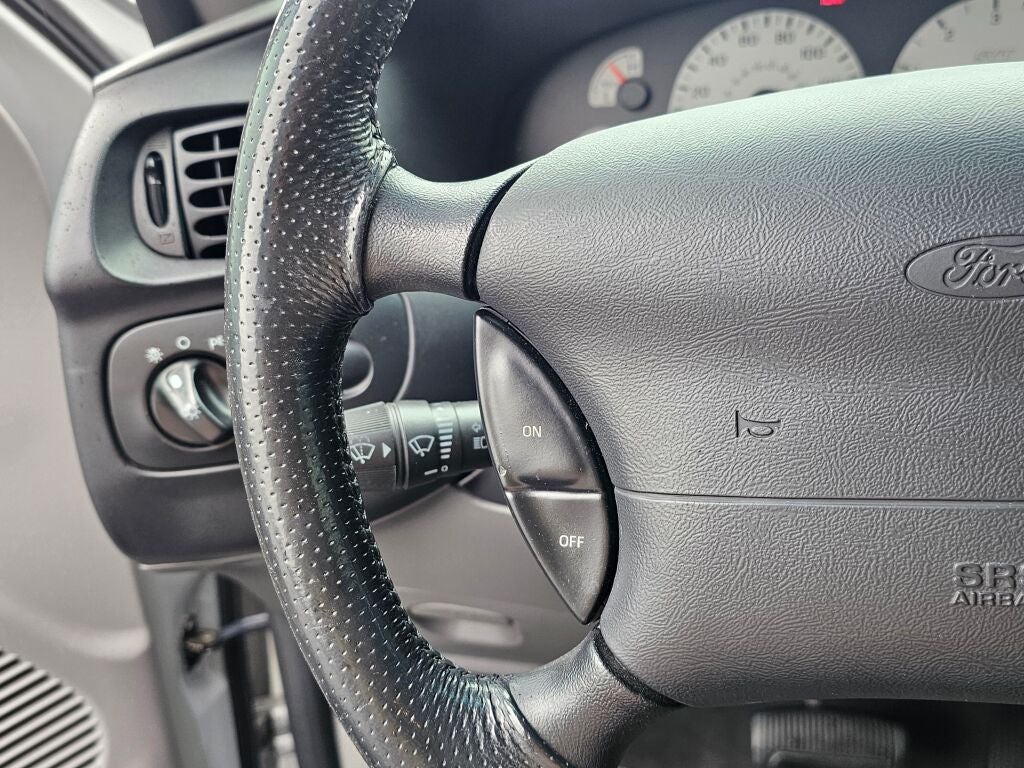

• Unique color-keyed leather-wrapped 4-spoke steering wheel
• Tilt steering column

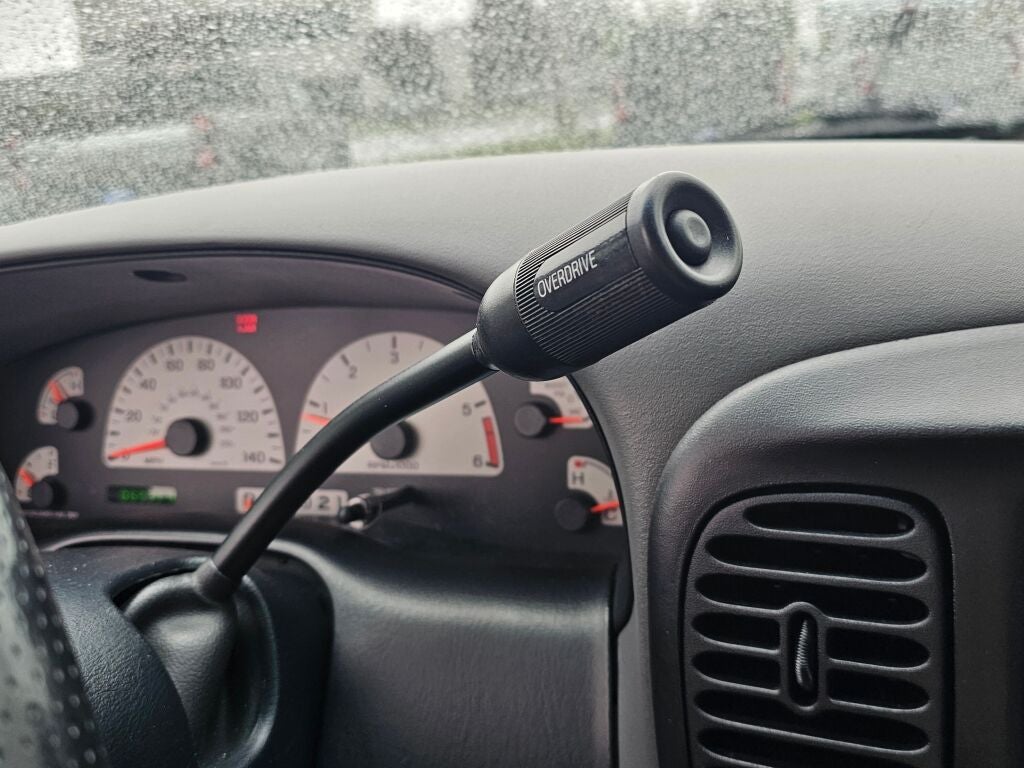

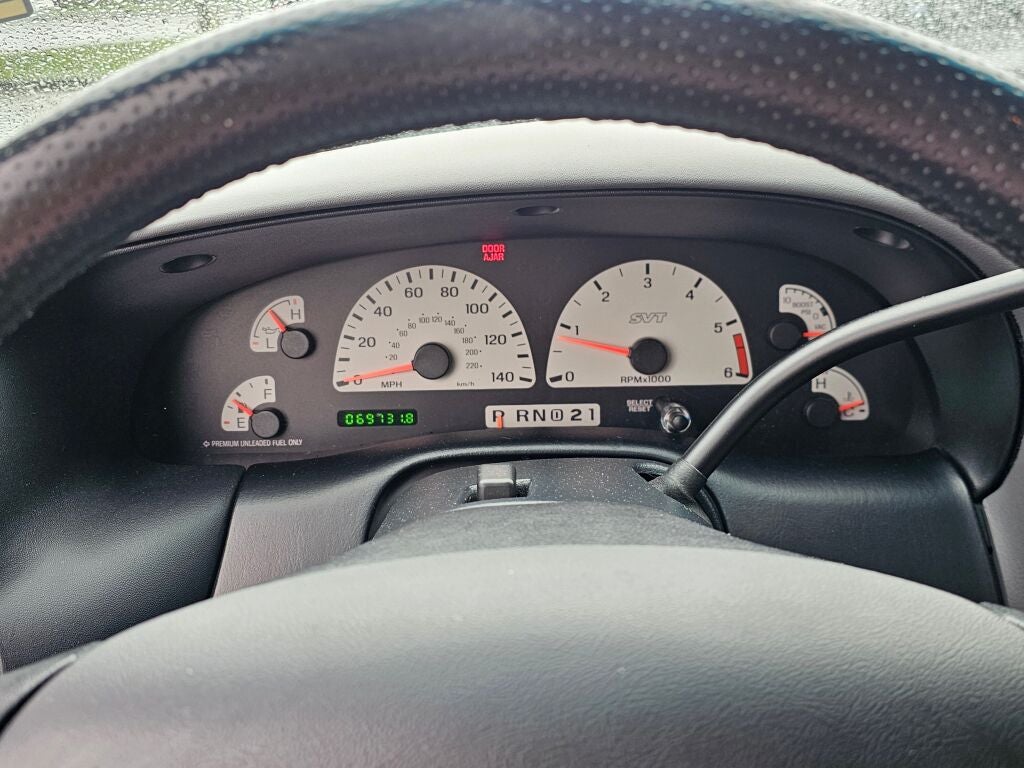

• Unique white-faced instrumentation-inc: 140 mph speedometer, tachometer, oil pressure, temperature, fuel, supercharger boost gauges

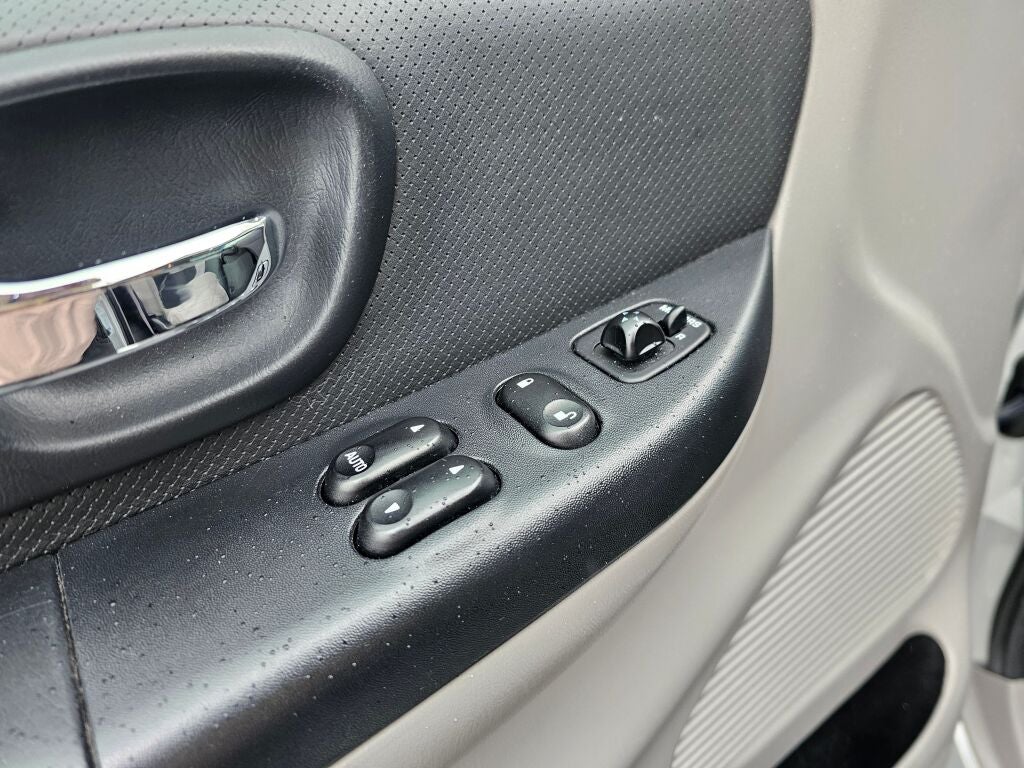

• Pwr windows w/driver side one-touch down/delayed accessory pwr
• Pwr door locks
• Remote keyless entry-inc: (2) key fobs, illuminated entry
• Driver-side keypad entry

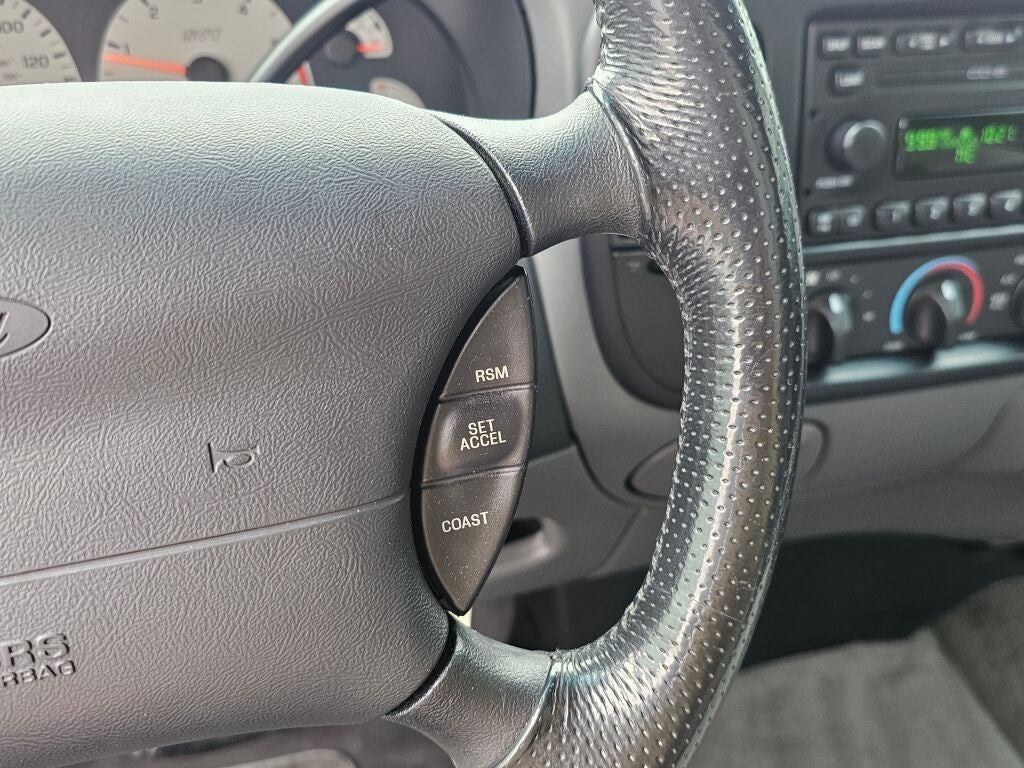

• Speed control
• Securilock anti-theft ignition

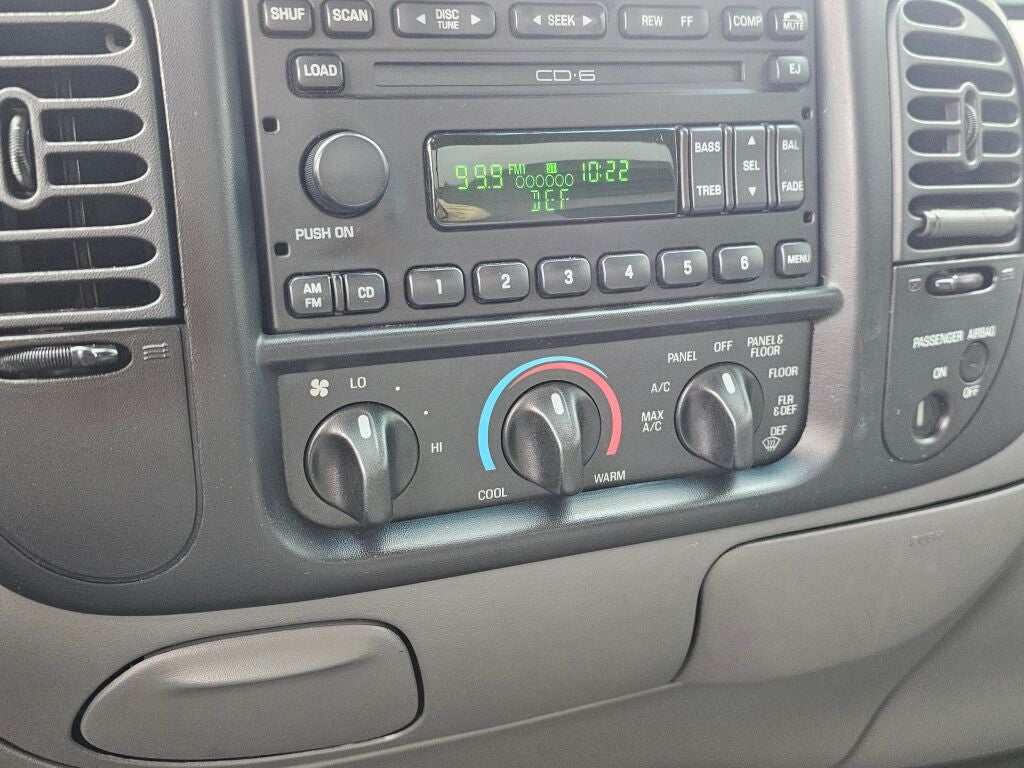

• Manual air conditioning

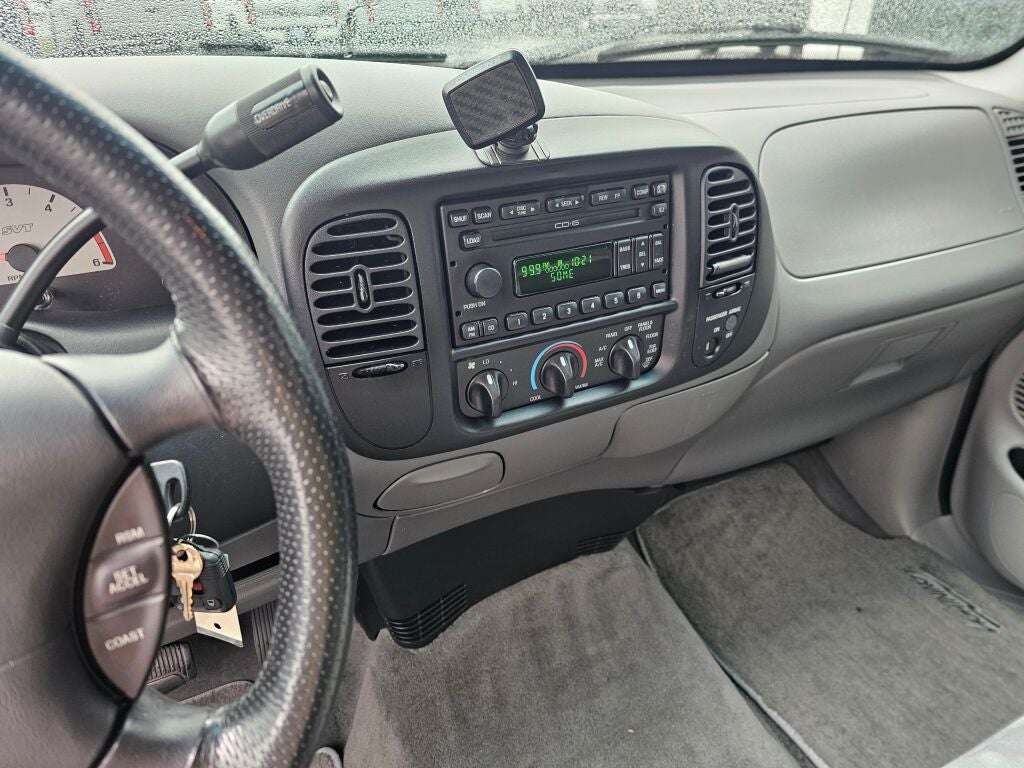

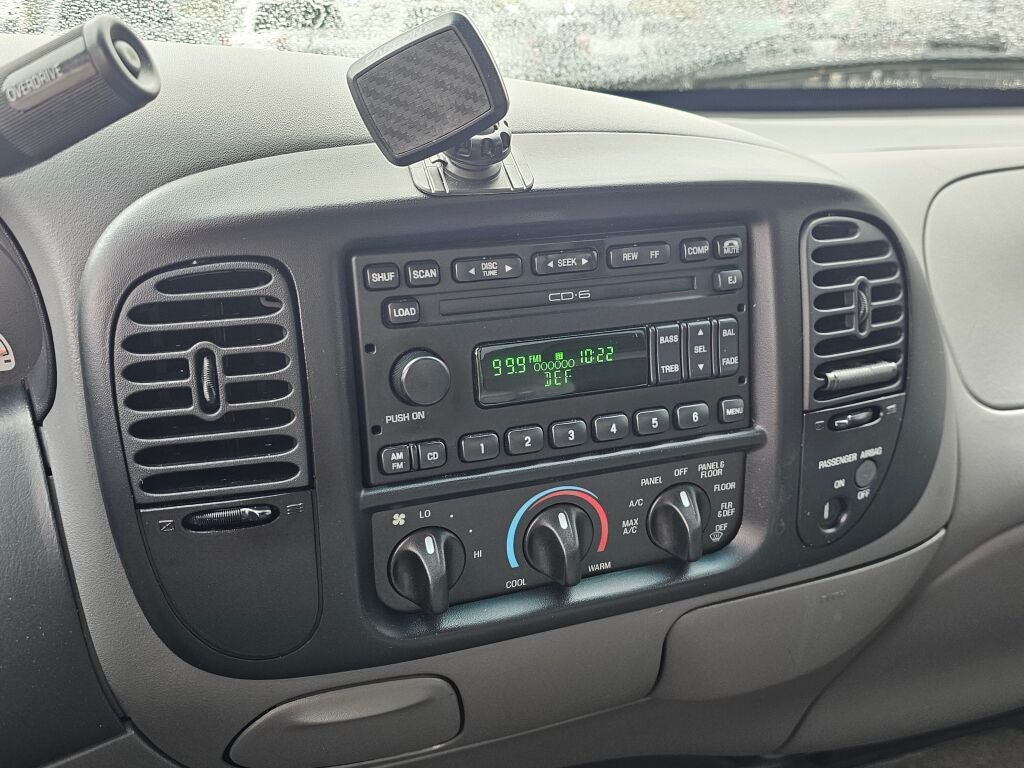

• Premium electronic AM/FM stereo radio w/6-disc in-dash CD changer-inc: clock, (4) speakers

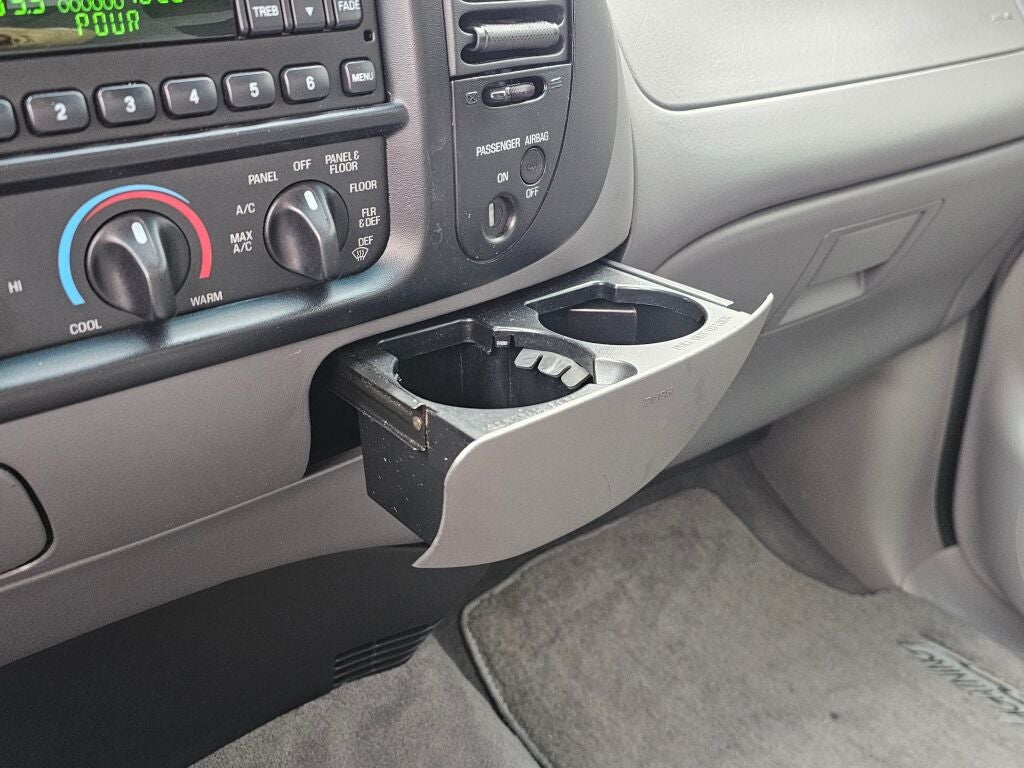

• Dual instrument panel cup holders
• Locking glove box

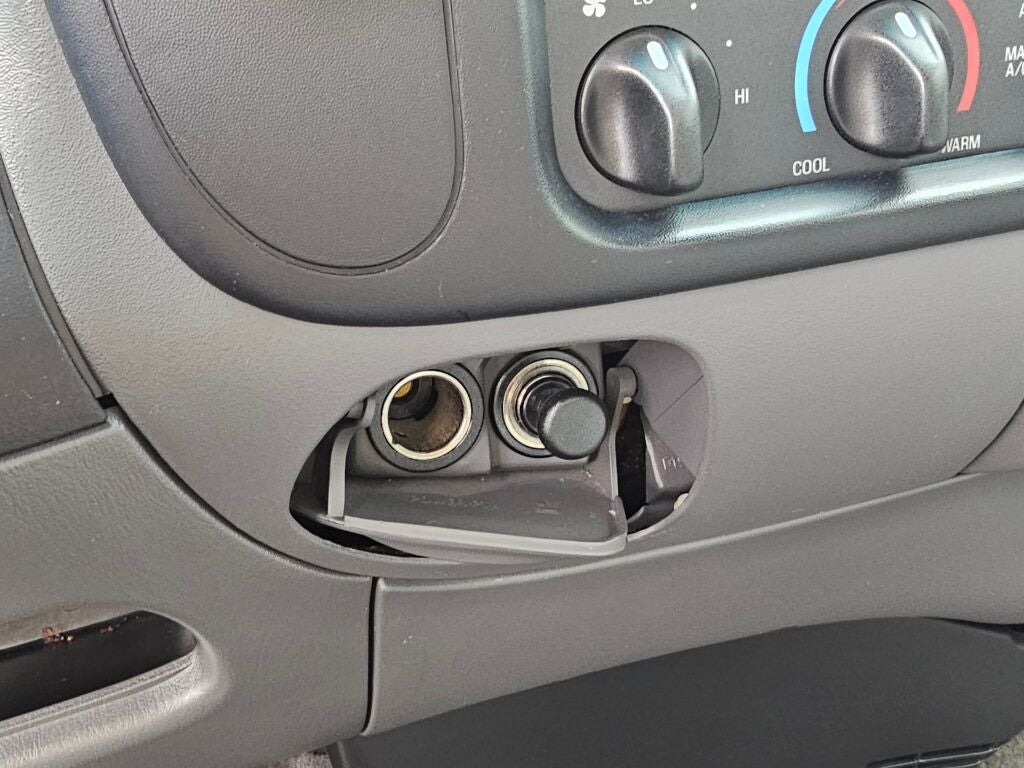

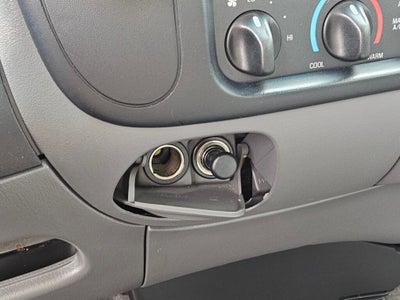

• Auxiliary pwr point in instrument panel
• Cigarette lighter
• Ashtray

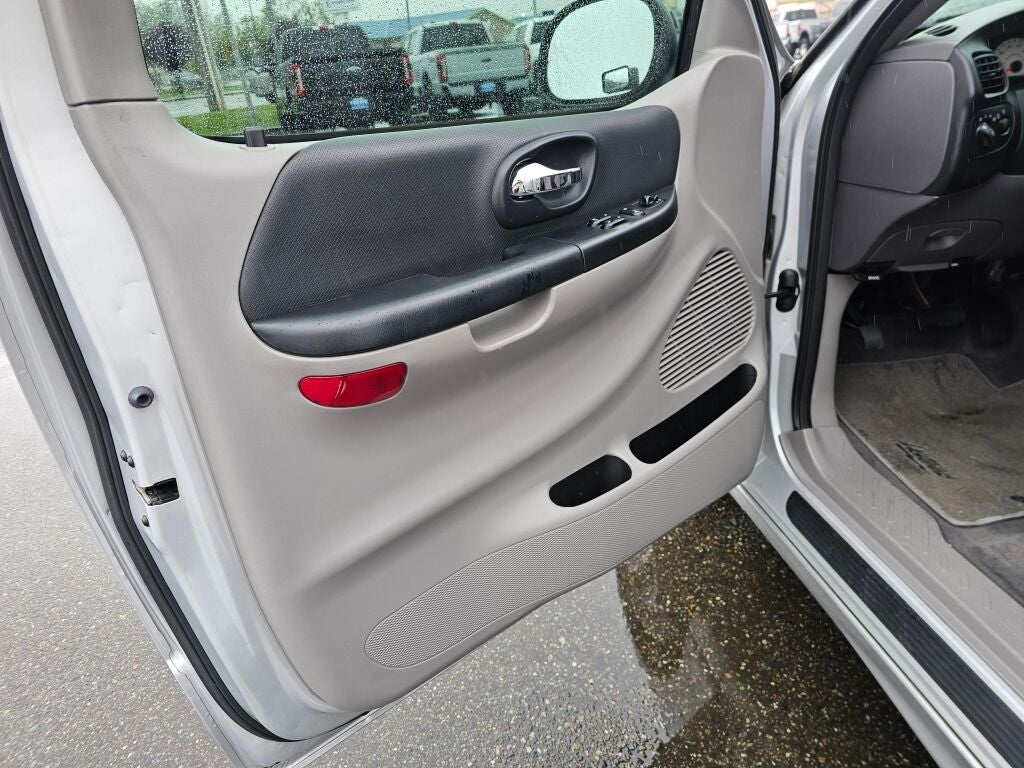

• Unique leather door trim panels w/color-keyed armrest, map pocket, satin chrome handles
• Dual A-pillar grab handles
• Overhead console-inc: compass, outside temp gauge
• Cloth sunvisors w/dual illum mirrors, LH strap
• Lights-inc: dome light w/dual map lights, underhood light

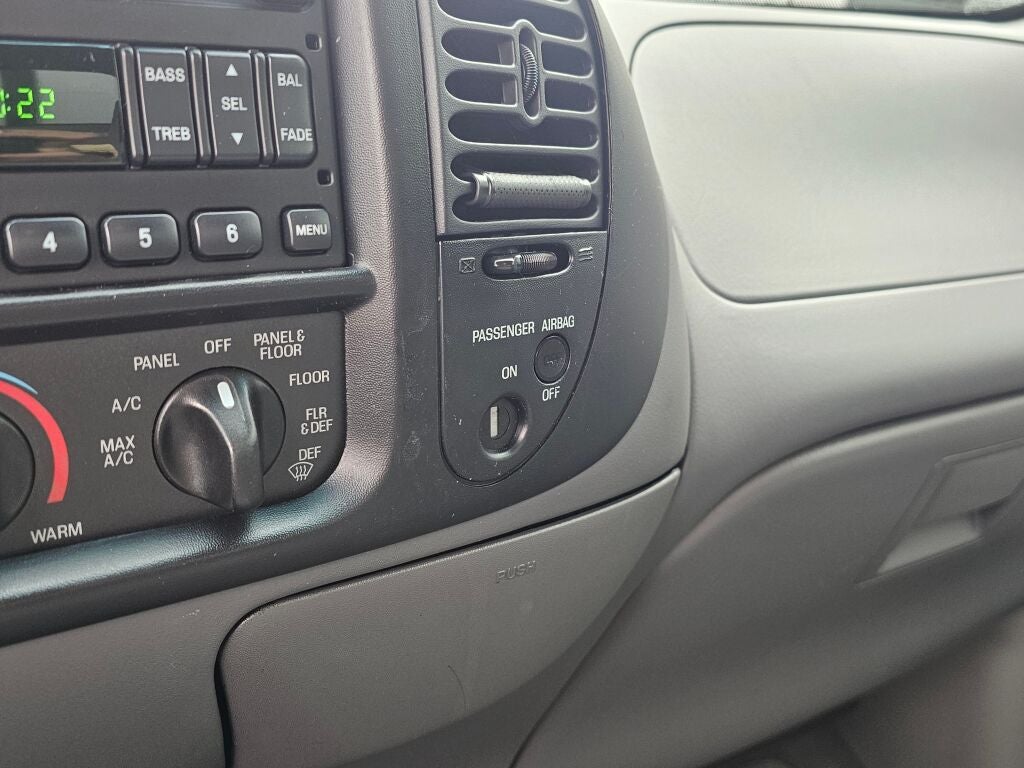

• Driver & front passenger airbags w/passenger-side deactivation switch
• Pwr front/rear anti-lock disc brakes (ABS)
• Outboard height-adjustable shoulder belts
• Lower Anchors and Tethers for CHildren (LATCH)

5.4L (330) SEFI OHC SUPERCHARGED V8 "TRITON" ENGINE

• (STD)

• Mileage
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 540
• Maximum Alternator Capacity (amps): 120
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 23.9
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 2950
• Gross Axle Wt Rating - Rear (lbs): 2800
• Curb Weight - Front (lbs): 2662
• Curb Weight - Rear (lbs): 2008
• Gross Vehicle Weight Rating Cap (lbs): 6050
• Gross Combined Wt Rating (lbs): 10,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5,000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 5,000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 750
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 5,000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1,250
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: 2-Stage Multi-Leaf
• Spring Capacity - Front (lbs): 2950
• Spring Capacity - Rear (lbs): 2900
• Axle Type - Front: Twin Forged SLA
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 2950
• Axle Capacity - Rear (lbs): 2800
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.22
• Stabilizer Bar Diameter - Rear (in): 0.91
• Brakes
• Brake Type: Power
• Brake ABS System: 4-wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.1 x 0.39
• Rear Brake Rotor Diam x Thickness (in): 13.2 x 0.43
• Tires
• Front Tire Order Code: T18
• Rear Tire Order Code: T18
• Spare Tire Order Code: T18
• Front Tire Size: P295/45R18
• Rear Tire Size: P295/45R18
• Spare Tire Size: 16"
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 18.0 x 9.5
• Rear Wheel Size (in): 18.0 x 9.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Power
• Steering Ratio (:1), On Center: 14.0
• Turning Diameter - Curb to Curb (ft): 40.5
• Turning Diameter - Wall to Wall (ft): 42.2
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 25.0
• Fuel Tank Location: Midship
• Exterior Dimensions
• Wheelbase (in): 119.9
• Length, Overall w/o rear bumper (in): 206.9
• Width, Max w/o mirrors (in): 79.3
• Height, Overall (in): 73.4
• Overhang, Front (in): 38.7
• Overhang, Rear w/o bumper (in): 48.3
• Front Bumper to Back of Cab (in): - TBD -
• Cab to Axle (in): - TBD -
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 33.2
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 78.8
• Cargo Box Width @ Top, Rear (in): 51.2 @ Belt
• Cargo Box Width @ Floor (in): 49.2
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 20.0
• Tailgate Width (in): - TBD -
• Cargo Volume (ft³): 50.2
• Interior Dimensions
• Passenger Capacity: 3
• Front Head Room (in): 40.8
• Front Leg Room (in): 40.9
• Front Shoulder Room (in): 63.8
• Front Hip Room (in): 61.0
• Summary
• Vehicle Name: Ford F-150 Heritage
• Body Style: Reg Cab 6.5' Flareside
• Body Code: 119.8" WB
